Main panel must be removed / opened and Sprite media player remote must be available
- Press Setup button (Next to power) on remote
- Using the orange arrow select Audio Output Mode
- Press Enter
- Choose AV
- Press Enter
- Audio will begin playing
If the settings above are correct or you are still not receiving audio, please verify the AMP is powered on and verify the connections below are made per the wiring schematics below.
Gift Loader Wiring Schematic

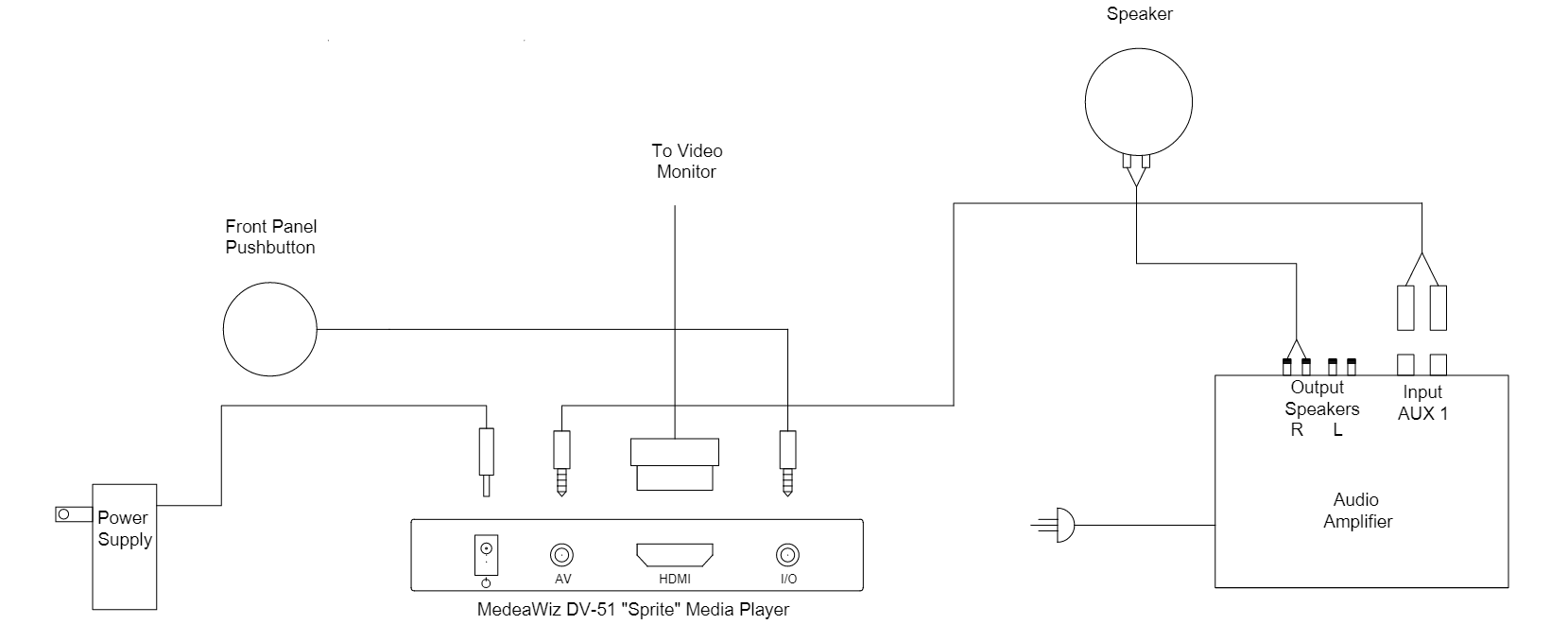

Weather Screen Wiring Schematic
